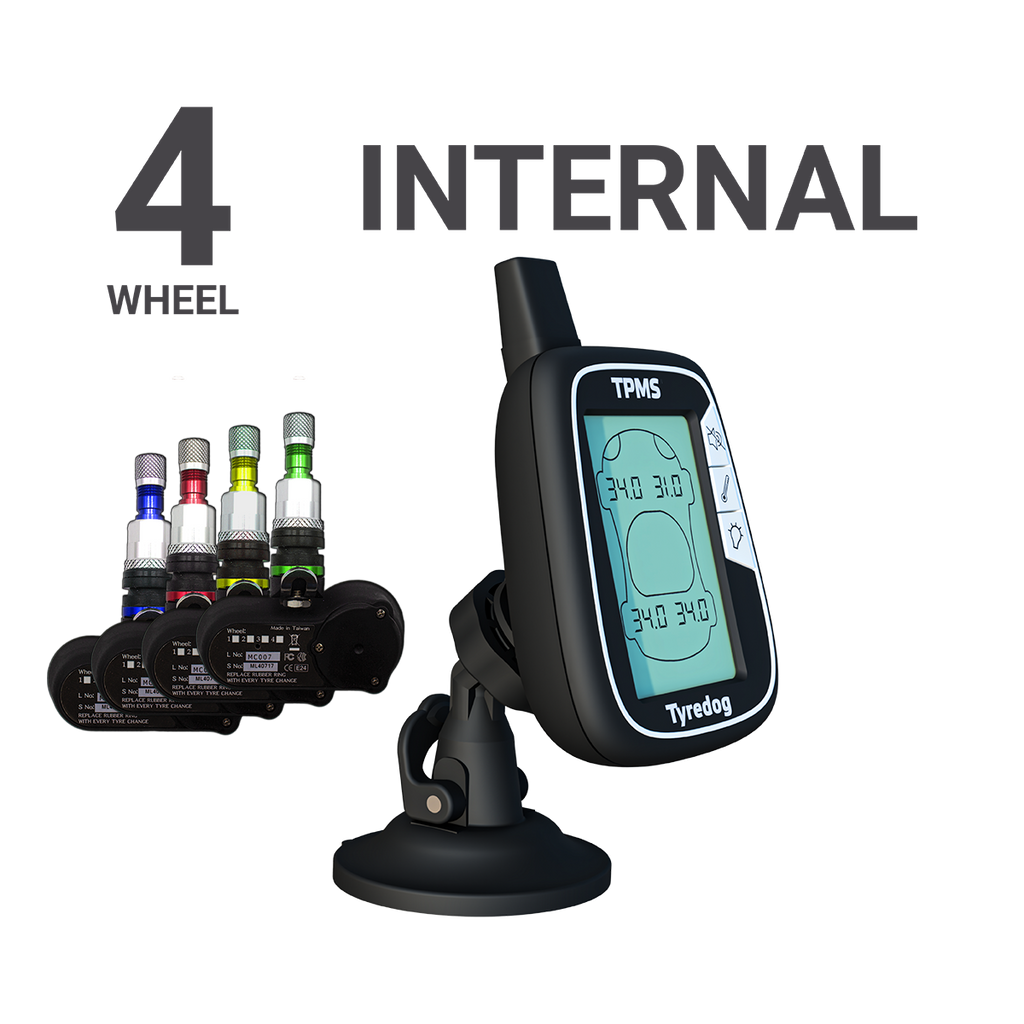

TD-1000A-I4 INTERNAL Tyre Pressure Monitoring System

Model: TD-1000A-I4

  • Sale
  • Regular price $299.00
Free Shipping.



The Ultimate Passenger Vehicle / 4WD OFFROAD Tyre Pressure Monitoring System

must have gadget for any off-roading enthusiasts. Stay alerted of any tyre abnormalities immediately, address the issue instantly and save yourself from serious and irreparable damage. The TYREDOG™ system is one of the most highly regarded offroad pieces of equipment that can save you from a trip ruining experience. Have complete confidence in your tyres knowing that you're being guarded by a TYREDOG™ . As little as 1 PSI change in pressure will be picked up by the TYREDOG™

The TYREDOG™ internally mounted tyre pressure monitoring system is a great solution for drivers looking to keep their sensors discreet or who constantly pressure up and down on the tracks.

Recommended Use: Car, Vans, 4WD, 4x4 Only (Monitor up to 80 PSI) - This cannot be used on a Trailer, Caravan or Towing Application.

Thousands of Aussies are protected by the TYREDOG™ Tyre Pressure Monitoring System. Have confidence knowing that the TYREDOG™ is always on guard.

Key Features

  • Internal Type Sensors. Adjustable Mounting Angle.
  • Sensors contain a Replaceable 3V CR2032 Battery.
  • Audible / Visual Alerts when tyre pressure drops below / raises above user set level.
  • Measure Pressure in PSI, KPA, BAR or KgCM.
  • Alerts when tyre temperature rises above the user set level.
  • Measure Temperature in Celsius or Fahrenheit.
  • Low Sensor Battery Indicator.
  • Tyre Rotation Feature.
  • 2 YEAR WARRANTY

What’s Included?

  • 1 x Monitor / Receiver.
  • 4 x Internal Sensors
  • 1 x Suction Cap Mounting Bracket.
  • 1 x Cigarette Lighter Power Adaptor.
  • Owners Manual.

Tyredog Internal Sensors



The TYREDOG™ TD-1000A-I Internal Tyre Pressure and Temperature Monitor is required to be fitted by a professional Tyre fitter. Fitting costs will vary and we recommend that you find out how much your local Tyre shop charges before purchasing this product.

The User Friendly Graphic Interface (LCD monitor) allows the user to monitor and understand the status of their tyres thus ensuring they are always well maintained.

The Design
• All sensors contain a long life battery life.
• Replacement Learnable sensors are available.
• Sensors have unique individual codes to ensure there is no interference from other 433MHz devices, even other TYREDOG™ systems.
• All TYREDOG™ kits undergo strict field testing to ensure quality.

How it works
The Wireless Sensors are fitted inside the tyre by a professional tyre fitter. The sensor is attached to a valve stem so the tyre fitter simply installs the new valve stems with the sensor attached. Once the Sensors are fitted and the monitor/receiver is plugged into a 12V DC Outlet (Cigarette Lighter socket) or you can use the 2 x AAA Batteries. Within a couple of minutes or once the wheels rotate, the latest Pressure and Temperature information will be updated on the monitor/receiver.

The sensors are constantly monitoring and reading your tyre pressure and temperature and as soon as there is a 1 PSI change in pressure and/or every 1 minute, the sensors will transmit the latest pressure and temperature reading to your monitor.

If the tyre pressure falls or rises above the user pre-set levels, the unit will beep to alert the driver. There is also a visual indication on the Monitor / Receiver unit. Low, High Pressure and High Temperature threshold settings can be adjusted per axle by the user.

Versatile MountingTyredog Mounting Bracket

Mount the TYREDOG™ how you want it. The super strong suction cap can be mounted on your windscreen. Utilising the ball join the TYREDOG™ screen can be perfectly positioned to your liking.



*Specifications subject to change without notice.





Sensor Specifications

Frequency 433.92 Mhz
Pressure Range 0-60 PSI (Reads Accurately up to 80PSI)
Accuracy

Pressure: ± 1 PSI - Temperature: ± 3 Deg °C

Operating Voltage 3V (CR2032 Replaceable Battery)
Operating Temperature -40 to 125 Deg °C
Operating Humidity 100%
Battery Life Approx. 3-5 Years
Dimensions 66mm(L) x33mm(W) x 13.5mm(H)
Valve Angle Adjustment 18° ~ 43°
Weight 42g (±1) inc battery



Monitor / Receiver Specifications

Frequency 433.92 Mhz
Operating Voltage 12V DC (via supplied cig. plug cable) or 2 x AAA batteries
Battery Life Approx. 12 Months
Operating Temperature -20 to 70 Deg °C
Dimensions 74mm(W) x 110mm(H) x 23mm(D)
LCD Screen Size 40mm(W) x 60mm(H)
Weight 100g



Warranty

Warranty 2 Years
