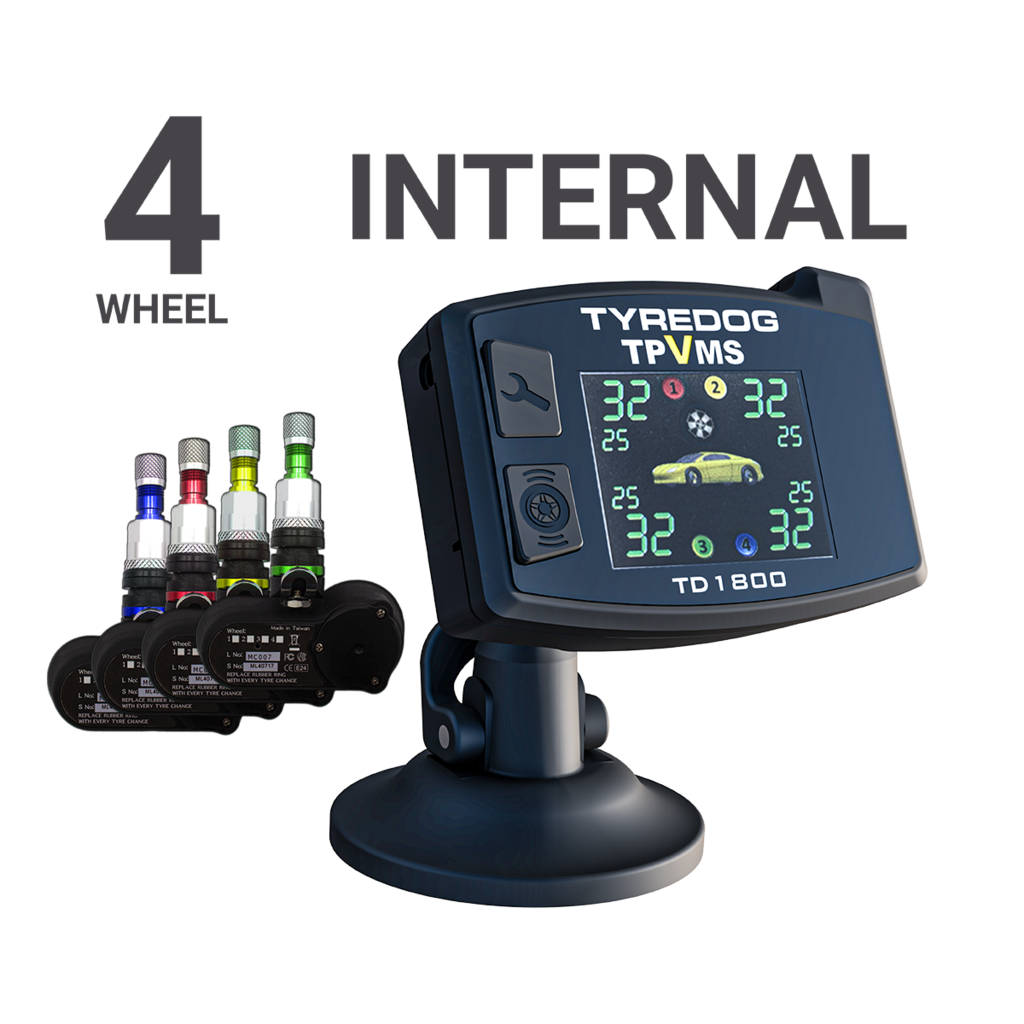

Tyre Pressure, Temperature & Vibration Monitoring System
The TD-1800 TPVMS INTERNAL Tire pressure vibration monitoring system is the world's first and only TPMS patented in multiple countries that can detect tyre and rim abnormalities. Through complex mathematical calculations the system can detect abnormal tyre vibration.
The benefits of measuring vibration is that the Tyredog system can now detect the following issues that are not caused by temperature or pressure irregularities including:
- Tyre Cracks & Deformation
- Rim Deformation
- Faulty Tyres
- Wheels that require an alignment
Recommended Use: Car, Vans, 4WD, 4x4 Only (Monitor up to 80 PSI) - This cannot be used on a Trailer, Caravan or Towing Application.
Key Features
|
What’s Included?
|
The TYREDOG™ TD-1800 Internal Tyre Pressure and Temperature Monitor is required to be fitted by a professional Tyre fitter. Fitting costs will vary and we recommend that you find out how much your local Tyre shop charges before purchasing this product.
The User Friendly Graphic Interface (LCD monitor) allows the user to monitor and understand the status of their tyres thus ensuring they are always well maintained.
The Design
• All sensors contain a long life battery life
• Learnable sensors are available so in the event of theft or damage, sensors can be quickly and easily replaced.
• Sensors have unique individual codes to ensure there is no interference from other 433MHz devices, even other TYREDOG™ systems.
• All TYREDOG™ kits undergo strict field testing to ensure quality.
How it works
The Wireless Sensors are fitted inside the tyre by a professional tyre fitter. Once the Sensors are fitted and the monitor/receiver is plugged into a 12V DC Outlet (Cigarette Lighter socket). Within a couple of minutes or once the wheels rotate, the latest Pressure and Temperature information will be updated on the monitor/receiver.
The sensors are constantly monitoring and reading your tyre pressure and temperature and as soon as there is a 1 PSI change in pressure and/or every 1 minute, the sensors will transmit the latest pressure and temperature reading to your monitor.
If the tyre pressure falls or rises above the user pre-set levels, the unit will beep to alert the driver. There is also a visual indication on the Monitor / Receiver unit. Low, High Pressure and High Temperature threshold settings can be adjusted per axle by the user.
Versatile Mounting
Mount the TYREDOG™ how you want it. The super strong suction cap can be mounted on your windscreen. Utilising the ball join the TYREDOG™ screen can be perfectly positioned to your liking.
*Specifications subject to change without notice.
Sensor Specifications
| Frequency | 433.92 Mhz |
| Pressure Range | 0-60 PSI (Reads Accurately up to 80PSI) |
| Accuracy |
Pressure: ± 1 PSI - Temperature: ± 3 Deg °C |
| Operating Temperature | -40 to 125 Deg °C |
| Operating Humidity | 100% |
| Battery Life | Approx. 5 Years |
| Dimensions | 27.6mm(W) x 60.4mm(L) x 11.7mm(H) |
| Adjustable Valve Angle | 18° ~ 43° |
| Weight | 36.9g (±1) |
Monitor / Receiver Specifications
| Frequency | 433.92 Mhz |
| Operating Voltage | 12V DC (via supplied cig. plug cable) |
| Battery Life | n/a - Monitor needs to be powered by 12V cig plug. Supports batteries for checking and programming purposes only. |
| Operating Temperature | -20 to 70 Deg °C |
| Dimensions | 70mm(W) x 54.8mm(H) x 24mm(D) |
| LCD Screen Size | 35mm(W) x 28mm(H) |
| Weight | 74 g |
Warranty
| Warranty | 2 Years |
