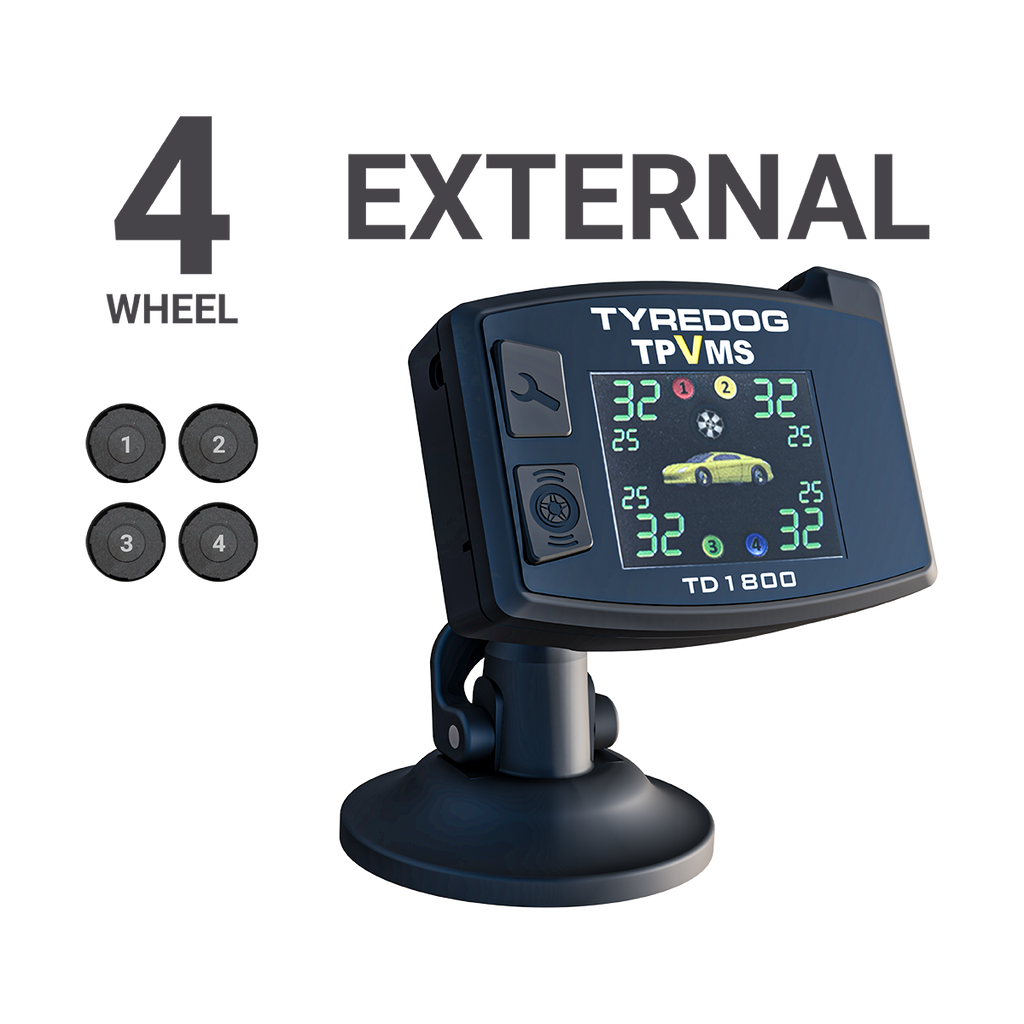

The TD-1800 TPVMS 4 Wheel External Tyre pressure vibration monitoring system is the world's first and only TPMS patented in multiple countries that can detect tyre and rim abnormalities. Through complex calculations the system can detect abnormal tire vibration.
The benefits of measuring vibration is that the Tyredog system can now detect the following issues that are not caused by temperature or pressure irregularities.
Recommended Use: Car, Vans, 4WD, 4x4 Only (Monitor up to 80 PSI) - This cannot be used on a Trailer, Caravan or Towing Application.
Key Features
|
What’s Included?
Optional Accessories
|
Once the Sensors are fitted and the monitor/receiver is turned on, within a couple of minutes or once the wheels rotate, the latest Pressure and Temperature information will be updated on the monitor/receiver.
The sensors are constantly monitoring and reading your tyre pressure and temperature and as soon as there is a 1 PSI change in pressure and/or every 1 minute, the sensors will transmit the latest pressure and temperature reading to your monitor.
If the tyre pressure falls or rises above the user pre-set levels, the unit will beep to alert the driver. There is also a visual indication on the Monitor / Receiver unit. Low, High Pressure and High Temperature threshold settings can be adjusted per axle by the user.
For further information regarding the operation of this unit, please read the Owners Manual which can be found by clicking on the Downloads Tab.
You may choose to fit the supplied SecureFit ring to ensure the sensor is securely fastened. This SecureFit ring can also act as a theft deterrent.
We've designed these sensors for off-road use. Suitable for river-crossings, sand, mud and everything in-between. Externally sealed from any water, moisture and dust.
*Specifications subject to change without notice.
Sensor Specifications
| Frequency | 433.92 Mhz |
| Pressure Range | 0-60 PSI (Reads Accurately up to 80PSI) |
| Accuracy |
Pressure: ± 1 PSI - Temperature: ± 2 Deg °C |
| Operating Voltage | 3V (CR1632 Replaceable Battery) |
| Operating Temperature | -40 to 125 Deg °C |
| Operating Humidity | 100% |
| Battery Life | Approx. 12 Months |
| Dimensions | 20.5mm Diameter / 22.7mm height |
| Weight | 11g (±1) / 13.5g (±1) inc battery |
Monitor / Receiver Specifications
| Frequency | 433.92 Mhz |
| Operating Voltage | 12V DC (via supplied cig. plug cable) |
| Battery Life | n/a - Monitor needs to be powered by 12V cig plug. Supports batteries for checking and programming purposes only. |
| Operating Temperature | -20 to 70 Deg °C |
| Dimensions | 70mm(W) x 54.8mm(H) x 24mm(D) |
| LCD Screen Size | 35mm(W) x 28mm(H) |
| Weight | 74 g |
Warranty
| Warranty | 2 Years |
Yes, the TYREDOG™ wireless Sensors have been designed to be externally completely sealed.
This means they are Water, Dust and Mud Proof and river crossings will not be a problem.
Just be sure they are rinsed off after entering any salt water.
Each Sensor has a rubber Seal which prevents water, condensation, dirt, dust and mud from damaging the device.
External Type (X) Sensors - The Estimated Battery Life will be approximately 1 year. It all depends on how often or how many hours the vehicle is used and the quality of the battery.
Each sensor contains 1 x 3V CR1632 Battery. The cost of a replacement battery will range from $3 to $6 and are available from most supermarkets and leading electronic stores. Alternatively you can purchase them through our website in the Spare Parts Section.
TDA-4C / TD-1XXX series Monitor / Receiver - The Estimated Battery Life depends on the model of your kit and also depends on how often the device is being used. Generally up to 12 Months for standard LCD screen passenger vehicle models (TDA-4C/TD-1000A). For all other colour screen models, the monitors must be powered by the 12v cigarette lighter plug. The colour monitors only require batteries for programming purposes if you need to take the monitor out of the vehicle. If using batteries, the colour monitor will switch off 30 seconds after the last button press.
The Monitor / Receiver will contain 2 standard AAA or AA batteries (Depending on the model).
TD-2XXX series Monitor / Receiver - The TD2700F models are required to be powered by the supplied 12V/24V cigarette lighter adapter. The monitors only require batteries for programming purposes if you need to take the monitor out of the vehicle.
The TDA-4C, TD-1XXX and TD-2XXX series all come with a DC adaptor which can also be used the power the Monitor / Receiver. (Note: TDA-4C, TD-1XXX are compatible with 12V DC only where as the TD-2XXX series is 12V/24V DC compatible)
Each kit contains a SecureFit fixing ring which once installed will help prevent Sensor theft.
Due to the small and compact size of each Sensor, they are not really a target for theft as they look very similar to an ordinary valve cap.
Alarm Thresholds can be set for each axle meaning you can set different values for the front and rear tyres if required.
Low Pressure Alarms we recommend setting this at around 10-15% below your Cold Tyre Pressure.
High Pressure Alarm we recommend setting this at around 20-25% above your Cold Tyre Pressure.
High Temperature Alarm we recommend setting this at 70 Deg C.
Please refer to this Table below for some recommended settings which can be used as a guide for setting your thresholds.
|
Vehicle Cold Tyre Pressure - PSI |
Unit Settings |
||
|
Low Pressure Alarm - PSI |
High Pressure Alarm - PSI |
High Temp. Alarm - Deg Celsius |
|
|
30 |
25 |
37 |
70 |
|
32 |
27 |
40 |
70 |
|
34 |
29 |
42 |
70 |
|
36 |
31 |
45 |
70 |
|
38 |
32 |
47 |
70 |
|
40 |
34 |
50 |
70 |
|
42 |
36 |
52 |
70 |
|
44 |
38 |
55 |
70 |
|
46 |
39 |
57 |
70 |
|
48 |
41 |
60 |
70 |
|
50 |
43 |
62 |
70 |
|
55 |
47 |
68 |
70 |
|
60 |
52 |
75 |
70 |
|
65 |
55 |
80 |
70 |
|
70 |
60 |
88 |
70 |
|
75 |
64 |
94 |
70 |
|
80 |
68 |
100 |
70 |
|
85 |
72 |
106 |
70 |
|
90 |
76 |
112 |
70 |
|
95 |
80 |
118 |
70 |
|
100 |
85 |
125 |
70 |
|
105 |
90 |
130 |
70 |
|
110 |
95 |
138 |
70 |
|
115 |
100 |
143 |
70 |
|
120 |
100 |
150 |
70 |
Yes you can order and program replacement LEARNABLE sensors for the complete range of TYREDOG™ products.
Each unit has a learning mode which allows the user to program in new replacement LEARNABLE sensors.
When ordering replacement Sensors, you must ensure you order the correct Sensor to suit your model, sensor type and the correct Wheel Position must be ordered. Sensor type is determined by removing the battery cover and battery then checking the colour of the label underneath where the battery is normally positioned.
For Example: If you require a new Sensor Number 2, then you must order a Sensor Number 2.
Replacement LEARNABLE sensors are available for each tyre location.
Go to the Spare Parts section on this site to find the complete range of available Sensors.
If any one of your sensors stop working, please remove the battery from that sensor and replace with a battery from a known working sensor.
Providing the monitor is on, as soon as you insert the known working battery, the sensor should come online.
If this fixes your problem, then you'll need to purchase a replacement battery.
If this doesn't fix the problem, then you will need to contact us or your place of purchase so the problem can be resolved.
Sensors working intermittently on Relay kits (TD-2000A-X/TD-2300A-X/2700F-X)
Firstly please make sure the relay has been mounted outside & underneath the vehicle. If the relay is mounted inside the vehicle or under a bonnet, your device may work intermittently. It will need to be repositioned to outside the vehicle. Check Sensors are within range of the relay.
If this doesn't fix the problem, then you will need to contact us or your place of purchase so the problem can be resolved.
If the SecureFit rings have been fitted, using the allen key tool supplied, simply loosen the SecureFit Ring then unscrew the sensor. If the SecureFit rings are not fitted then the sensor simply unscrews and you can then inflate or deflate your tyres.
If the optional 3-way valve has been fitted, then you simply remove the valve cap on the 3-way valve and inflate / deflate your tyres as normal. (There is no need to remove the sensor if the 3-way valve is used - These are only suitable for Trucks and Buses or vehicles which contain a deep dish rim and metal valves.
The TYREDOG™ wireless Tyre Pressure and Monitoring system monitor / receiver will show a battery Icon for both the Monitor and the individual Sensor when it's time to replace the battery.
Once the icon appears, we suggest that you replace the appropriate battery within a few days. This will ensure your tyres are always protected.
Transmission range is around 20-30 metres line of sight. However as the sensors transmit via Radio Frequency, the vehicle shape, size of the vehicle and the metal structure reduces this range to 5-10 meters (less than 5m for internal type sensors). Sometimes more, sometimes less. This is why the passenger vehicle models are not suitable for towing applications.
To increase the transmission range, the TYREDOG™ TD-2700F-X Series contains a Relay / Repeater Module.
This module is required for Trucks, Buses, Motor Homes, Heavy Duty Vehicles and Vehicles with a Trailer or Caravans.
The Relay / Repeater module must be mounted within 5-10 metres range of the Sensors (closer the better) but the Relay/Repeater can be up to around 60-80 metres away from the monitor / receiver.
